1. Introduction

Research in the social sciences, management, education, health, and technology increasingly deals with abstract constructs and complex causal relationships. Variables such as attitudes, perceptions, commitment, satisfaction, and behavioural intentions cannot be measured directly and often interact in intricate ways. In such contexts, traditional statistical tools like correlation and multiple regression provide only partial insights, as they are limited in handling multiple relationships simultaneously and do not adequately address measurement error.

Structural Equation Modelling (SEM) has emerged as a rigorous and theory-driven methodological approach that addresses these limitations. SEM integrates measurement theory with causal modelling, enabling researchers to empirically test comprehensive theoretical frameworks. As a methodological tool, SEM strengthens research design, enhances construct validity, and supports robust hypothesis testing. This blog discusses the role of SEM from a research methodology perspective, highlighting its conceptual foundations, analytical stages, and applications across disciplines.

2. SEM as a Research Methodological Framework

Structural Equation Modelling is not merely a statistical technique but a complete methodological framework for testing theoretically grounded models. It allows researchers to specify relationships among latent constructs and observed variables based on prior literature and conceptual reasoning. SEM is particularly suitable for confirmatory research, where hypotheses are derived from established theories and tested using empirical data.

From a methodological standpoint, SEM combines two key models: the measurement model and the structural model. The measurement model focuses on construct operationalisation and validation, while the structural model examines causal relationships among constructs. This dual structure ensures that researchers do not test relationships among poorly defined or unreliable variables, thereby improving the overall methodological quality of the study.

3. Measurement Model: Construct Validation and Reliability

The measurement model is a critical component of SEM methodology. It specifies how latent variables are measured through multiple observed indicators, usually obtained from survey instruments or psychometric scales. This stage involves confirmatory factor analysis (CFA), which is used to assess construct validity and reliability.

Methodologically, the measurement model enables researchers to evaluate convergent validity, discriminant validity, and internal consistency reliability. Indicators with weak factor loadings can be identified and removed, ensuring that each construct is measured accurately. By explicitly modelling measurement error, SEM provides more reliable parameter estimates than traditional regression-based approaches.

For example, in organisational research, constructs such as job satisfaction or organisational commitment are often multidimensional. SEM allows researchers to validate these constructs before examining their influence on outcomes such as job performance, thereby strengthening the credibility of the findings.

4. Structural Model: Hypothesis Testing and Causal Path Analysis

Once the measurement model is validated, the structural model is employed to test hypothesised relationships among latent constructs. This stage corresponds to hypothesis testing in research methodology. The structural model estimates direct, indirect, and total effects, offering a comprehensive understanding of causal mechanisms.

Unlike conventional methods that test relationships independently, SEM evaluates all hypothesised paths simultaneously. This methodological advantage reduces biased estimates and allows researchers to assess mediation and moderation effects within a single model. As a result, SEM supports more nuanced explanations of research phenomena.

For instance, a study examining employee performance may hypothesise that workplace environment influences performance indirectly through organisational commitment. SEM enables the researcher to test this mediating relationship explicitly, providing empirical evidence for theoretical assumptions.

5. Model Fit and Evaluation in SEM Methodology

An important methodological contribution of SEM lies in model evaluation. SEM does not rely solely on statistical significance of path coefficients; it also assesses how well the proposed model fits the observed data. Goodness-of-fit indices provide evidence regarding the adequacy of the theoretical model.

From a research methodology perspective, model fit evaluation encourages researchers to critically assess their theoretical assumptions. Poor model fit may indicate misspecified relationships, omitted variables, or inadequate construct operationalisation. Researchers can refine models based on theoretical justification, leading to improved explanatory power and theoretical clarity.

This iterative process distinguishes SEM from purely exploratory techniques and reinforces its role as a confirmatory and theory-testing methodological approach.

6. Strengths of SEM from a Methodological Perspective

SEM offers several methodological advantages. It accounts for measurement error, supports complex model testing, and integrates theory with empirical analysis. By combining measurement validation and hypothesis testing, SEM enhances internal validity and reduces estimation bias.

Additionally, SEM allows for model comparison and multi-group analysis, enabling researchers to test whether theoretical relationships hold across different populations or contexts. These features make SEM particularly valuable for advanced empirical research.

7. Methodological Challenges and Best Practices

Despite its strengths, SEM requires careful methodological planning. Adequate sample size, sound theoretical grounding, and appropriate model specification are essential for meaningful results. Researchers must avoid overfitting models or relying solely on fit indices without theoretical justification.

Best practices in SEM methodology include thorough literature review, clear construct definition, rigorous measurement validation, and transparent reporting of model evaluation criteria. When applied responsibly, SEM serves as a powerful methodological tool rather than a purely technical procedure.

8. Step-by-Step SEM Methodology Workflow

Structural Equation Modelling follows a systematic and theory-driven workflow. Adhering to these methodological stages ensures analytical rigor, validity of findings, and meaningful interpretation of results. The SEM process can be broadly organised into five interrelated steps: Research Design, Confirmatory Factor Analysis, Structural Model Estimation, Model Fit Evaluation, and Interpretation of Results.

Step 1: Research Design and Model Specification

The SEM process begins at the research design stage. Here, the researcher clearly defines the research problem, objectives, and hypotheses based on an extensive review of literature. A conceptual or theoretical framework is developed, specifying latent constructs and the hypothesised relationships among them. At this stage, researchers must decide whether the model is reflective or formative in nature and select appropriate observed indicators for each construct.

Methodologically, careful attention is given to questionnaire design, scale selection, and sample size determination. Since SEM is sensitive to sample adequacy, researchers are expected to ensure sufficient observations to support reliable estimation. This stage establishes the theoretical foundation upon which the entire SEM analysis rests.

Step 2: Confirmatory Factor Analysis (CFA)

Once data are collected, the next methodological step is Confirmatory Factor Analysis. CFA is employed to validate the measurement model by examining the relationship between latent constructs and their observed indicators. Unlike exploratory factor analysis, CFA is theory-driven and tests whether the data fit the pre-specified factor structure.

At this stage, researchers assess factor loadings, construct reliability, convergent validity, and discriminant validity. Indicators with low loadings or high cross-loadings may be removed based on theoretical justification. Establishing a valid and reliable measurement model is essential, as any structural relationships tested later depend on the soundness of construct measurement.

Note:

Although Confirmatory Factor Analysis (CFA) is traditionally associated with covariance-based structural equation modelling, it was not employed as a separate analytical step in the present study due to the adoption of Partial Least Squares Structural Equation Modelling (PLS-SEM). PLS-SEM follows a variance-based approach in which measurement model evaluation is integrated within the overall modelling procedure rather than conducted independently through CFA. Accordingly, construct reliability and validity were assessed using indicator loadings, internal consistency measures, convergent validity, and discriminant validity criteria, which collectively serve the same methodological purpose as CFA. This approach is consistent with contemporary research practices, particularly in exploratory and predictive studies involving complex models and latent constructs. Hence, the omission of a standalone CFA does not weaken the methodological rigor of the study but instead reflects alignment with the chosen analytical technique and prevailing methodological standards.

Step 3: Structural Model Estimation

After confirming the adequacy of the measurement model, the structural model is specified and estimated. This step corresponds to hypothesis testing in SEM methodology. The structural model represents the causal paths among latent constructs as proposed in the theoretical framework.

Methodologically, this stage allows researchers to estimate direct, indirect, and total effects simultaneously. Mediation and moderation effects can also be incorporated within the same model. By testing all hypothesised relationships together, SEM reduces estimation bias and provides a comprehensive understanding of the underlying causal structure.

Step 4: Model Fit Evaluation

Model fit evaluation is a distinctive methodological feature of SEM. Rather than relying solely on individual path significance, SEM assesses how well the overall model represents the observed data. Goodness-of-fit indices provide evidence on whether the proposed theoretical model is empirically acceptable.

If the model demonstrates poor fit, researchers may consider theoretically justified modifications, such as correlating error terms or revising structural paths. However, modifications should always be guided by theory rather than statistical convenience. This iterative evaluation process strengthens both methodological rigor and theoretical clarity.

Step 5: Interpretation and Reporting of Results

The final stage of the SEM workflow involves interpretation and reporting. Researchers interpret path coefficients, significance levels, effect sizes, and explained variance in relation to the study objectives and theoretical expectations. Emphasis is placed on understanding the substantive meaning of relationships rather than merely reporting statistical outputs.

Methodologically sound interpretation also includes discussing theoretical implications, practical relevance, and limitations of the model. Clear and transparent reporting of the SEM procedure enhances replicability and contributes to the credibility of the research.

9. Practical Example of SEM with JDR Model

Explanation of the Model

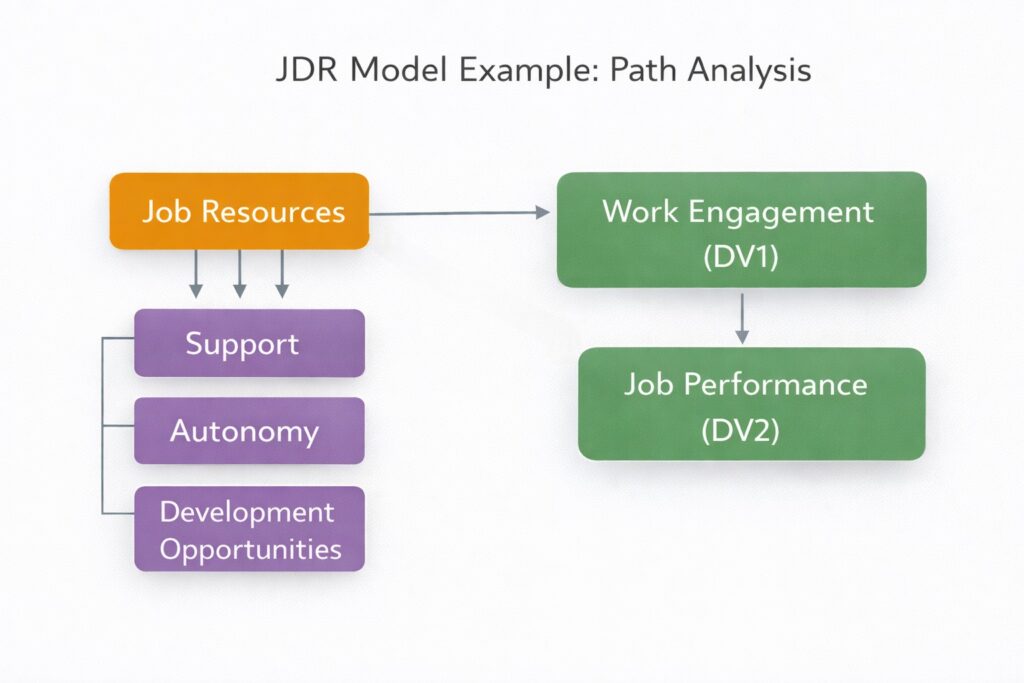

The above diagram presents the Job Demands–Resources (JDR) Model in a simplified path analysis structure, where Job Resources function as the independent variable and influence employee outcomes exclusively through Work Engagement. Job Resources, represented through key sub-dimensions such as support, autonomy, and development opportunities, enhance employees’ motivational state by fostering higher levels of work engagement. Work Engagement (DV1), characterised by vigour, dedication, and absorption in work, serves as a central mediating mechanism in the model. Increased engagement subsequently leads to improved Job Performance (DV2), indicating that employees who are more engaged are more likely to perform their roles effectively. This model underscores the theoretical premise of the JDR framework that motivational processes play a critical role in translating workplace resources into performance outcomes.

10. Statistical Software tools for SEM

Structural Equation Modelling is supported by a wide range of specialised statistical software tools, each designed to cater to different research objectives, data characteristics, and methodological preferences. Covariance-based SEM tools such as AMOS, LISREL, and Mplus are commonly used for theory testing and model confirmation. These tools are particularly suitable when the research is grounded in established theoretical frameworks and when assumptions such as multivariate normality and adequate sample size are reasonably met. AMOS is widely preferred for its graphical interface and ease of use, LISREL is known for its strong mathematical foundation, and Mplus offers advanced capabilities for handling complex models, including longitudinal data, multilevel structures, and latent growth modelling. These tools allow researchers to conduct confirmatory factor analysis, assess structural relationships, and evaluate overall model fit using established goodness-of-fit indices.

In contrast, variance-based SEM tools such as SmartPLS, WarpPLS, and PLS-Graph are increasingly adopted in contemporary research, particularly in exploratory and prediction-oriented studies. These tools are well suited for models with complex relationships, smaller sample sizes, and non-normal data distributions. SmartPLS is especially popular due to its user-friendly interface and comprehensive measurement model assessment features, including reliability and validity testing without requiring a separate CFA. WarpPLS provides additional flexibility by modelling non-linear relationships, while PLS-Graph serves as an early platform for PLS-based analysis. The availability of these diverse SEM tools enables researchers to select software that aligns closely with their methodological approach, thereby enhancing analytical robustness and interpretative clarity.

11. Conclusion

From a research methodology perspective, Structural Equation Modelling represents a comprehensive approach to theory testing and model validation. Its ability to integrate measurement and structural analysis makes it especially suitable for research involving latent constructs and complex causal relationships.  By strengthening construct validity, supporting simultaneous hypothesis testing, and promoting theory-driven analysis, SEM enhances the rigor and credibility of empirical research. When grounded in strong theoretical frameworks and applied with methodological discipline, SEM functions as a bridge between conceptual models and empirical evidence, contributing significantly to methodological advancement across research domains.
